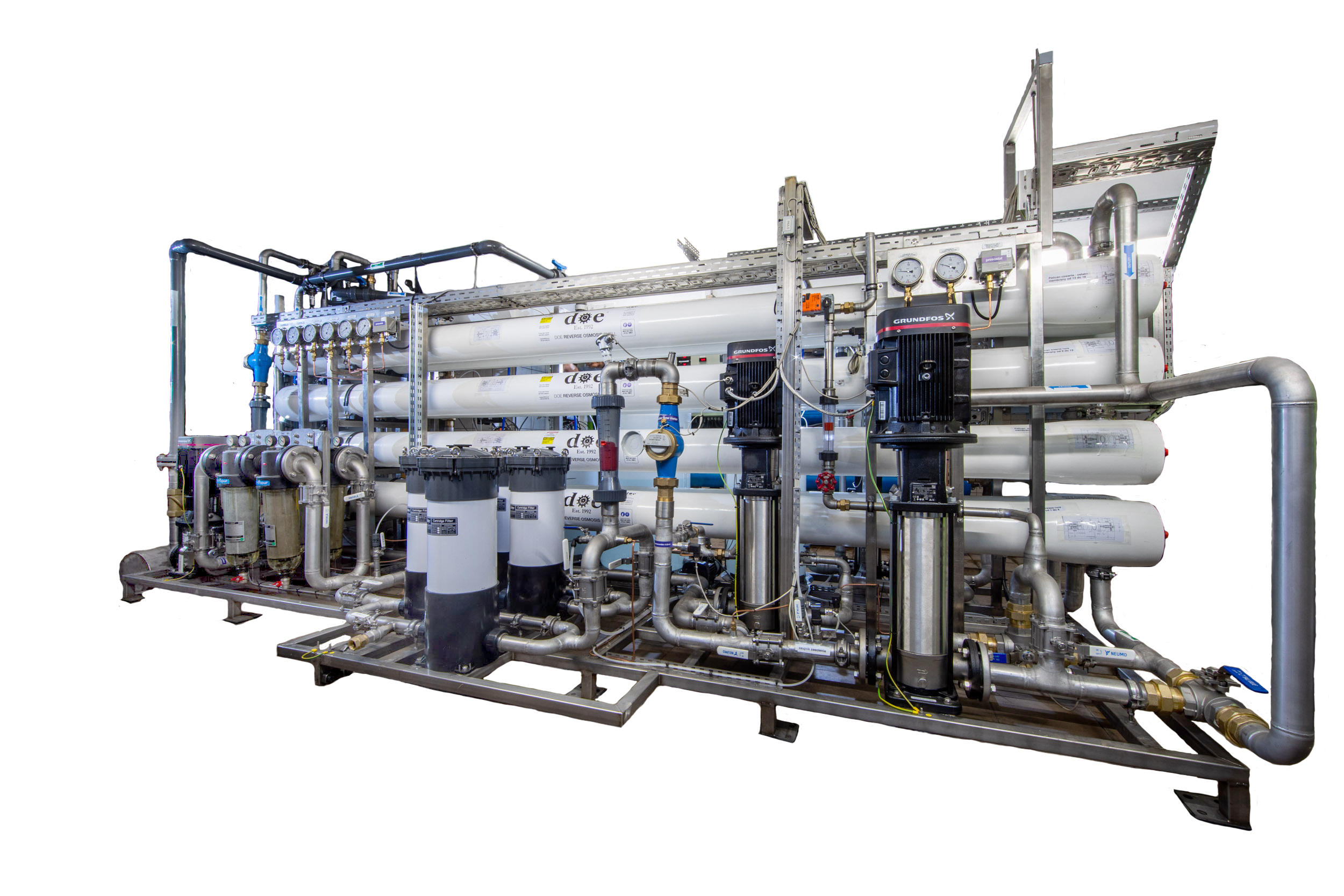

DOE OCTOPUS DEMINERALIZATION STATION

WATER INLET AFTER SAND FILTRATION

-QUANTITY: 17M3/H

-QUALITY: MAX 700 TDS

-CONECTION: DN50

PRODUCT

-QUANTITY APROXIMIETLY 13M3/H

-QUALITY <5 MICROSIEMENS/CM

COMPLETE DESCRIPTION OF R.O. STATION:
-MAIN AUTOMATIC SHUT-OFF VALVE;
-REMOTE FLOW METERS FOR DETERMINING THE R.O. PERFORMANCE AFTER STAGE I/II AND FOR DETERMINING THE DOSING OF CORRECTION CHEMICALS;
-SET OF SHUT-OFF AND REGULATING VALVES, STAINLESS STEEL OR PVC;
-SET OF STAINLESS STEEL SAMPLING VALVES FOR ANALYZING THE PERFORMANCE OF EACH MEMBRANE HOUSING COMPRISING THE ENTIRE STATION;
-pH AND TEMPERATURE METER WITH LOCAL AND REMOTE CONTINUOUS READOUT FROM BOTH STAGES IN THE COMMON TRANSFER TANK;
-CONDUCTIVITY METER WITH CONTINUOUS READOUT ON THE SYSTEM CONTROLLER SCREEN;
-SET OF PRESSURE GAUGES AND PRESSURE SENSORS:
-AT THE WATER INLET BEFORE PRE-FILTERS;
-AFTER FILTERS BEFORE STAGE I PUMP;
-AFTER STAGE I PUMP;
-AFTER STAGE I BEFORE STAGE II PUMP;
-AFTER STAGE II;
-WATER CORRECTION SET:
-ANTISCALANT DOSING SYSTEM: GRUNDFOS DDE PUMP;
-TANK;
-PIPING;
-CONTROL SYSTEM WITH OPERATION AND FAULT SIGNALIZATION
-AUTOMATIC CONTROL, DEPENDING ON FLOW OR START SIGNAL FROM THE STATION, AS WELL AS MANUAL OPERATION;
-WATER CORRECTION SET:
-ANTIOXIDANT DOSING SYSTEM,
-PROTECTING MEMBRANES FROM THE HARMFUL EFFECTS OF CHLORINE:
-CONSISTING OF DOSING PUMP (GRUNDFOS DDE),
-TANK,
-PIPING,
-OPERATION AND FAULT SIGNALIZATION CONTROL;
-AUTOMATIC CONTROL DEPENDING ON FLOW OR STATION START SIGNAL OR MANUAL CONTROL;
-CHEMICAL CLEANING, DISINFECTION, AND PRESERVATION SYSTEM FOR MEMBRANES, EQUIPPED WITH:
-TANK
-CHEMICALLY RESISTANT GRUNDFOS PUMP
-SWITCHING AND DRAIN VALVES
-NECESSARY PIPING AND MEASUREMENT INSTRUMENTS IN CHEMICAL-RESISTANT VERSION;
-PIPING SET:
-PIPING ON THE DISCHARGE SIDE OF HIGH-PRESSURE PUMPS MADE OF SS304L STEEL PIPES, MINIMUM WALL THICKNESS 2.8mm.
-REMAINING PIPELINES MADE OF PLASTIC (E.G. PVC) OR STAINLESS STEEL;
-SET OF PRESSURE VESSELS WITH MEMBRANES FOR TWO STAGES;
-R.O. SYSTEM CONTROL PANEL – 1 PC
SPECIFICATION:
-MATERIAL: GALVANIZED STEEL, POWDER-COATED;
-POWER SUPPLY: 3x400V 50Hz;
-FULLY EQUIPPED AND WIRED;
-CABLES MEETING THE HIGHEST STANDARDS;
-DEGREE OF PROTECTION: IP54;
-POWER-CONTROL CABINET INSTALLED NEXT TO THE OSMOSIS STATION
-CABINET DIMENSIONS ADJUSTED TO THE INSTALLATION LOCATION, ALLOWING FOR MAINTENANCE WITH DOORS OPEN;
-CABINET EQUIPMENT:
-PLC CONTROLLER;
-10″ CONTROL PANEL;
-SIGNAL LAMPS: READY, OPERATION, FAULT/ALARM;
-EMERGENCY STOP;
-MAIN SWITCH;
-2PCS INVERTERS FOR MAIN PUMPS;
-REQUIRED RELAY SETS;
-OVERCURRENT AND MOTOR PROTECTION SETS;
-POWER SUPPLY UNIT;
-INPUT/OUTPUT MODULES;
-DETAILED SIGNAL LIST TO BE AGREED WITH THE INVESTOR;
-AUTOMATIC OPERATION DEPENDENT ON THE LEVEL IN THE MAIN DEMI WATER TANK;
-VISUALIZATION PANEL WITH SOFTWARE WILL ALLOW:
-AUTOMATIC R.O. OPERATION;
-MANUAL/REMOTE OPERATION;
-VALVE CONTROL;
-MAIN PUMP CONTROL WITH OPERATING PARAMETER SETTINGS;
-FLUSHING PUMP CONTROL;
-PUMP AND MEMBRANE PROTECTION AND INTERLOCKS;
-ANTISCALANT AND ANTIOXIDANT PUMP CONTROL DEPENDING ON FLOW;
-VIEWING STATION OPERATING PARAMETERS SUCH AS pH, CONDUCTIVITY, FLOW, ETC.;

FRAME FOR THE ENTIRE SYSTEM – 1 PC
-MATERIAL: STAINLESS STEEL – 304
-WITH MOUNTS FOR FLOOR INSTALLATION;
-HANDLES ENABLING LIFTING OF THE ENTIRE SYSTEM;
-UNPAINTED.
