REVERSE OSMOSIS TECHNOLOGY IS USED TO PURIFY WATER, REMOVE SALT, BACTERIA, VIRUSES AND OTHER DISSOLVABLE CHEMICALS.

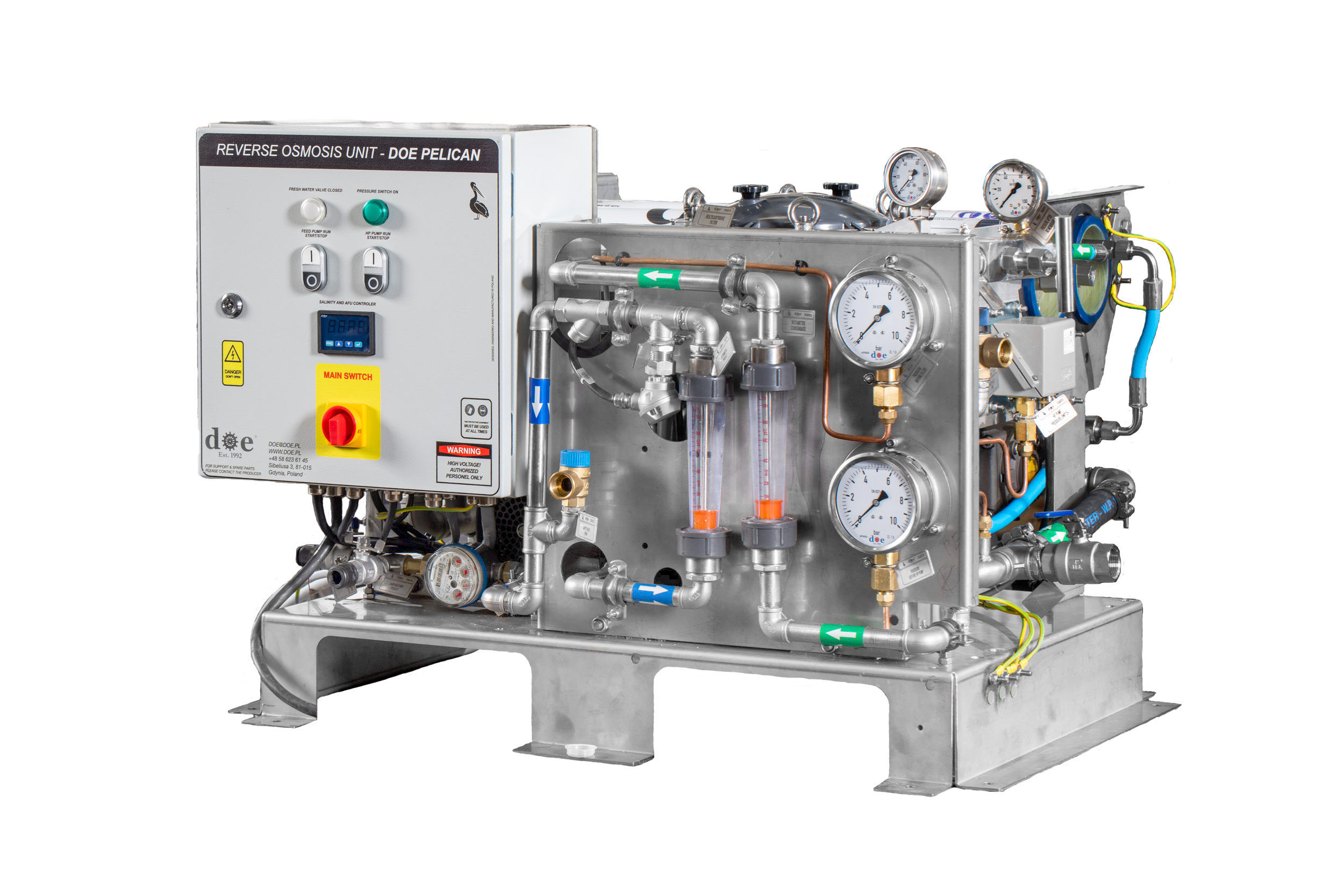

PELICAN MEDIUM IS A DURABLE MACHINE WITH ROBUST CONSTRUCTION, EASY FOR MAINTENANCE.

CAPACITY: 110l/h (WITH 25 DEG. C AND 36000 PPM SALT WATER)
FLOW IN: 30m3/24H OF SALT WATER
POWER SUPPLY: 3x400V 50Hz
SCOPE OF SUPPLY:
-HIGH RPESSURE PUMP WITH ELECTRIC MOTOR – 1 PC
-FEED PUMP (SEA WATER) WITH ELECTRIC MOTOR – 1 PC
-HIGH PRESSURE RO MEMBRANES – 1 PC
-GRP PRESSURE VESSELS FOR RO MEMBRANES – 1 SET
-ELECTRICAL BOX – 1PC

FULLY EQUIPPED WITH POWER SUPPLY, ALARM LIGHTS AND FUSES MATERIAL: GALVANISED BLACK STEEL, POWDER PAINTED PROTACTION CLASS: IP54

1. MAIN CONTROL PANEL IS LOCATED ON THE UNIT SKIDM IT WILL CONTROL THE UNIT AND ITS PARAMETERS.
2. REMOTE CONTROL PANEL IS ABLE TO START/STOP PUMPS AND CHECK THE PRODUCT SALINITY.
3. PANEL TO BE CONNECTED BY SHIPYARD WITH 30M CABLES WHICH ARE ADDED TO THE UNIT

EQUIPMENT:
– COMMON FRAME MADE OF STAINLESS STEEL
– PRESSURE SWITCH FOR HP PROTECTION
– PRE-FILTER 5 MICRONS
– PRESSURE GAUGES
– ROTA-METERS
– SAFETY VALVES
– PRESSURE DUMPER
– SALNITY METER
– PIPING MADE OF SS 316L OR BETTER
– AUTOMATIC FLUSHING SYSTEM
– NAME PLATE

ESTIMATED WEIGHT (NET): 210kg
ESTIMATED WEIGHT AND DIMENSIONS (GROSS): 1 CHEST 250kg 120x80x70 cm

DOCUMENTATION SCOPE:
– MANUAL
– SPARE PARTS LIST
– INSTALATION GUIDE
– OPERATION INSTRUCTIONS
