Description:

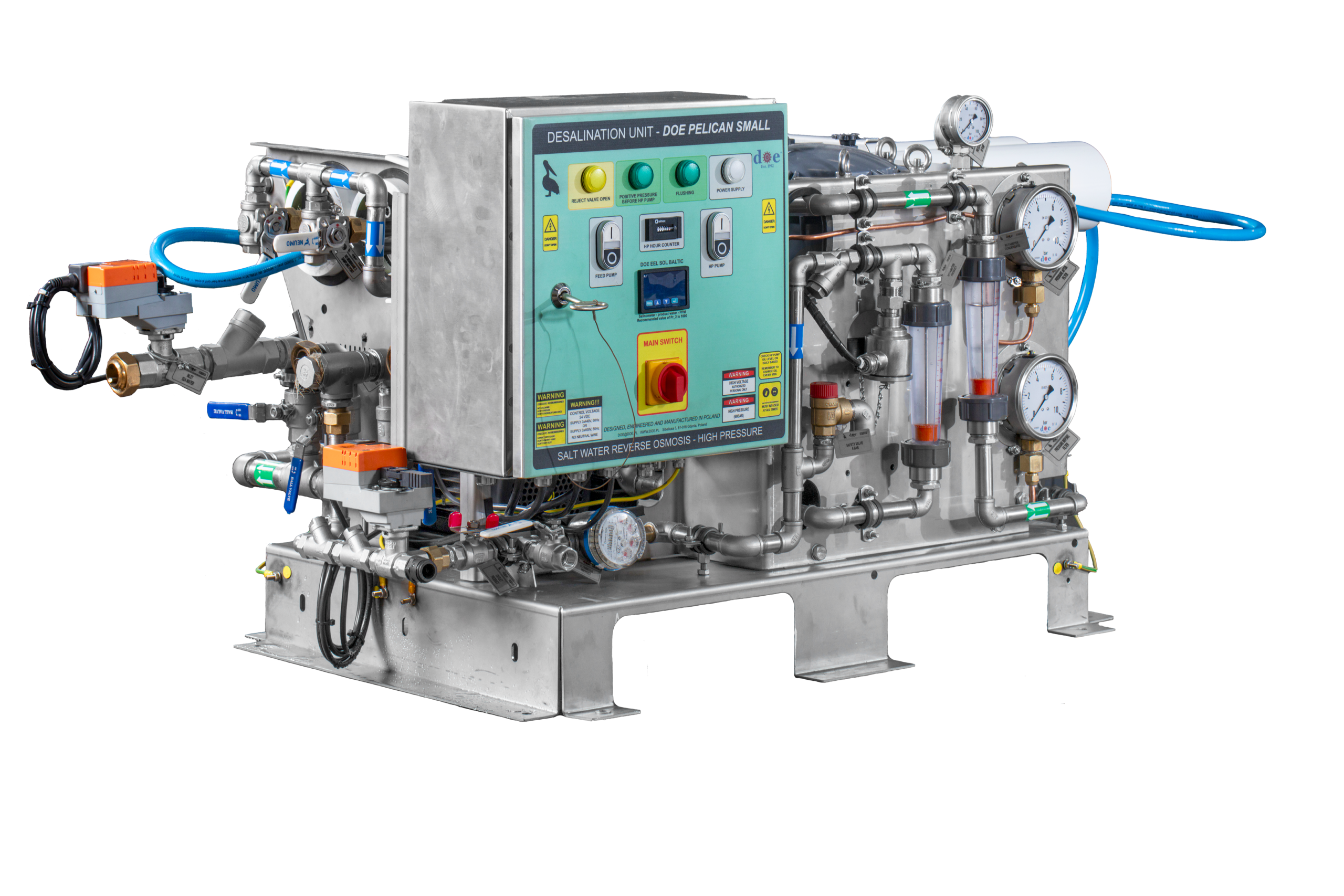

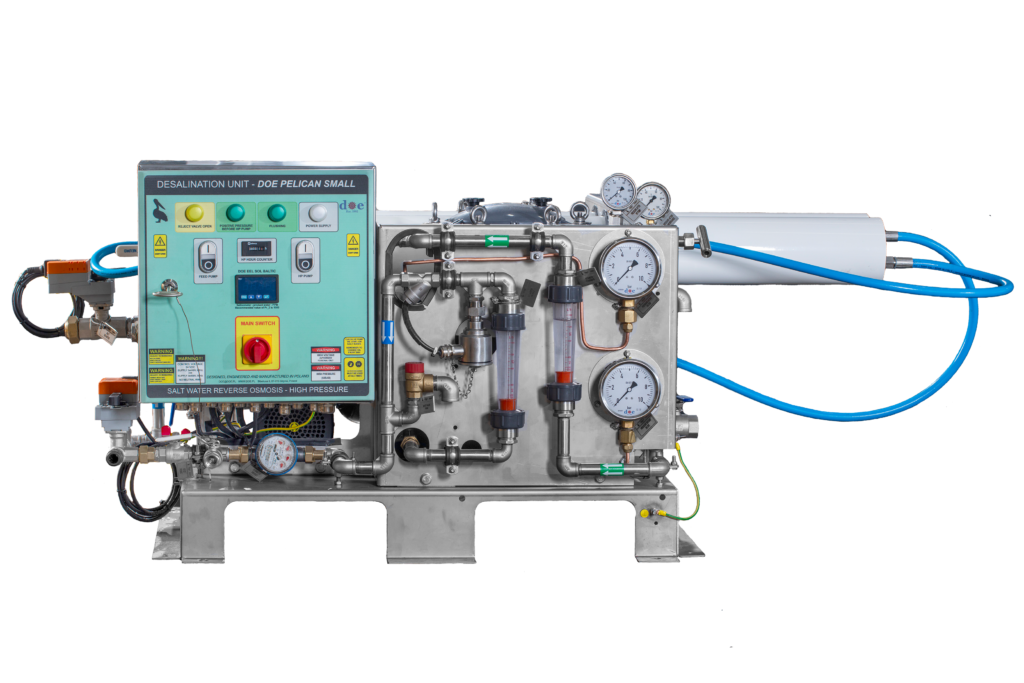

PELICAN SMALL IS AN ULTRA COMPACT & LIGHT UNIT
REVERSE OSMOSIS TECHNOLOGY IS USED TO PURIFY WATER, REMOVE SALT, BACTERIA, VIRUSES AND OTHER DISSOLVABLE CHEMICALS.
PELICAN SMALL IS A DURABLE MACHINE WITH ROBUST CONSTRUCTION, EASY FOR MAINTENANCE.

CAPACITY:
– WITH 35 DEG. C AND 36000 PPM SALT WATER: AROUND 6,8 m3/24h
– WITH 25 DEG. C AND 36000 PPM SALT WATER: AROUND 7,0 m3/24h
– WITH 20 DEG. C AND 36000 PPM SALT WATER: AROUND 7,0 m3/24h
– WITH 5 DEG. C AND 36000 PPM SALT WATER: AROUND 7,1 m3/24h

THE DEVICE ALLOWS TO PRODUCE TECHNICAL WATER FROM FRESH WATER

SCOPE OF SUPPLY:
– HIGH PRESSURE RO MEMBRANES WITH GRP PRESSURE VESSELS – 1 SET
– HIGH PRESSURE PUMP WITH ELECTRIC MOTOR
(SUITABLE FOR SALT WATER)
– FEED PUMP WITH ELECTRIC MOTOR
– ELECTRICAL BOX (CONTROL UNIT)
FULLY EQUIPPED WITH POWER SUPPLY, ALARM LIGHTS AND FUSES POWER SUPPLY: 3x440V 60Hz

MATERIAL: GALVANIZED BLACK STEEL, POWDER PAINTED

PROTECTION CLASS: IP54
– MOUNTING FRAME MADE OF STAINLESS STEEL, POWDER PAINTED (IF REQUIRED) – PRESSURE SWITCH FOR HP PROTECTION
– PRE-FILTER 5 MICRONS
– PRESSURE GAUGES – 1 SET
– ROTAMETERS – 1 SET
– SAFETY VALVES – 1 SET
– PRESSURE DUMPER FOR HP PUMP
– SALINITY METER – 1 SET
– SEMI-AUTOMATIC FLUSHING SYSTEM (AFU) –
(WATER FOR FLUSHING MUST NOT BE CHLORINATED)
– PIPING MADE SS 316L, SCREW CONNECTION – BRASS
– CONNECTIONS, HOSES
– NAME PLATE MADE OF STAINLESS STEEL
