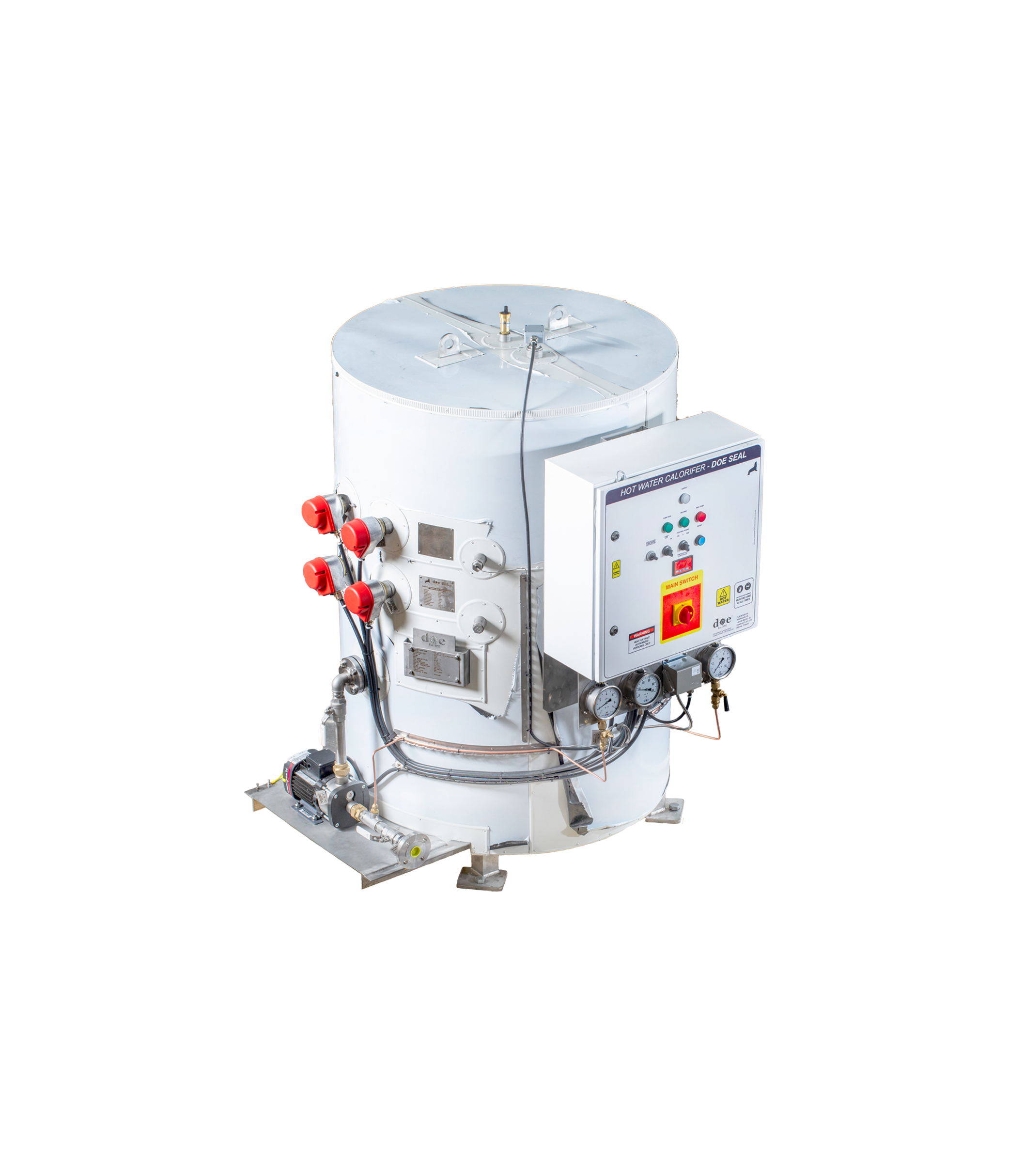

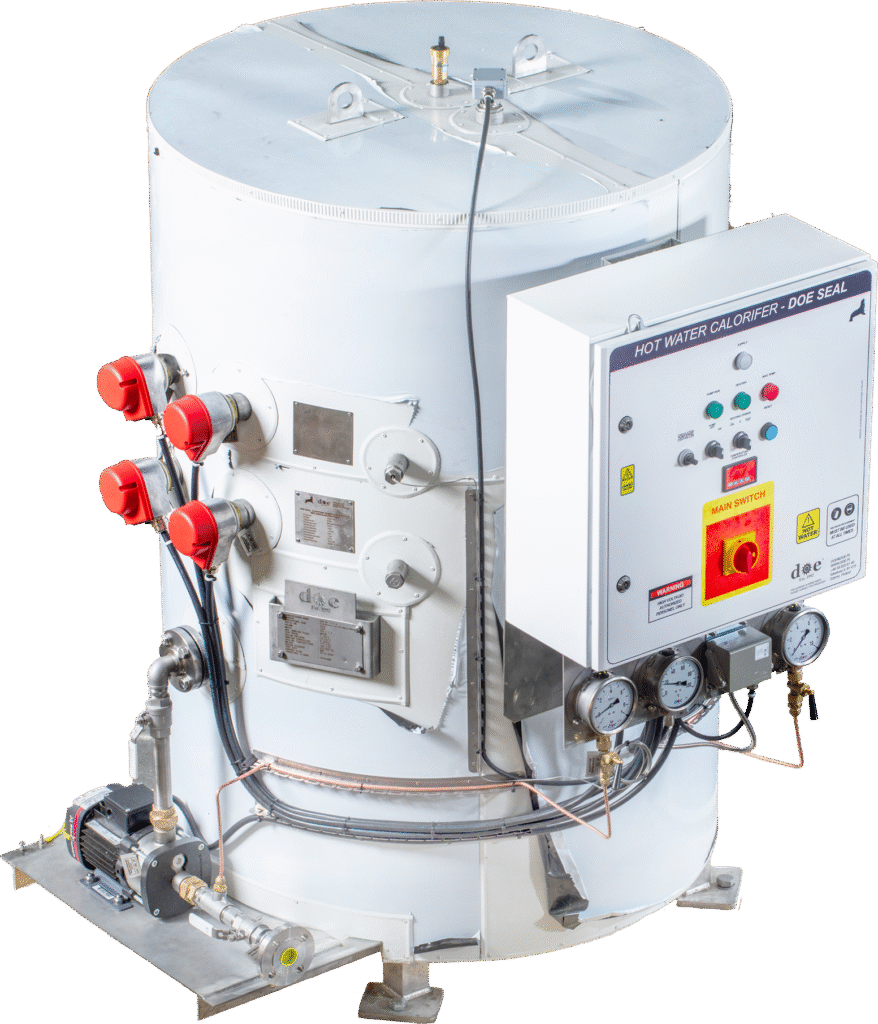

VOLUMETRIC WATER HEATING DEVICE FOR MARINE EXECUTION

HEATING CAPACITY: 16,4 KW
HEATING ELEMENTS – 4 PSC

TANK – 1 PC
TYPE – VERTICAL, CYLINDRICAL
CAPACITY – 750 L
DESIGN PRESSURE – 8 BAR
MAX. WORKING PRESSURE – 7 BAR
DESING TEMPERATURE – 95°C
WORKING TEMEPERATURE – 70°C
MATERIAL – STAINLESS STEEK – 1.4404 – 316L

EQUIPMENT:- PRESSURE GAUGE MADE OF STAINLESS STEEL AISI 316 – 2 PCS
– PRESSURE GAUGE VALVE – 2 PSC
– THERMOSTAT – SAFETY – 1 PC
– TERMOMETER MADE OF STAINLESS STEEL AISI 316 – 1 PC
– LEVEL SWITCH – 1 PC
– TEMPERATURE TRANSMITTER AND INDCICATOR ( DOE EEL) – ADJUSTING THE OPERATING TEMPERATURE OF THE HEATERS – 1 SET
– SAFETY VALVE 1 PSC
– DRAIN VALVE 1 CAL – 1 PC.
– HEADHOLE – 1 PC.

PIPING:
TUBE FOR CONTROLL EQUIPMENT – COPPER
