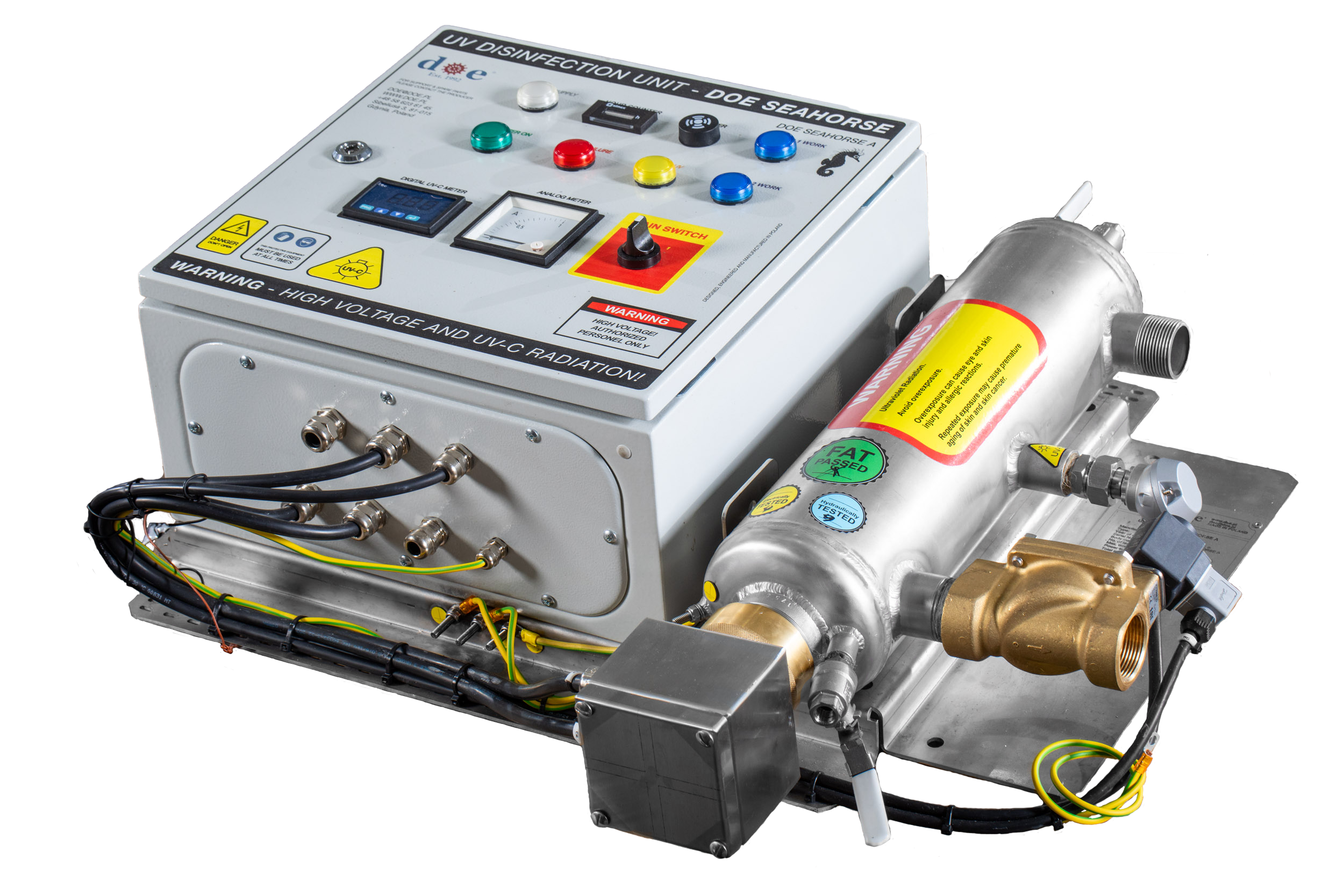

DOE Seahorse A
POWER SUPPLY
-STANDARD: 230V, 50Hz – SPECIAL: ON DEMAND
TOTAL POWER CONSUMPTION: 100W
SCOPE OF DELIVERY:
– DISINFECTION UNIT BODY MADE OF STAINLESS STEEL 316L – 1 PC.
– ELECTRICAL BOX MADE OF GALVANIZED BLACK STEEL, POWDER PAINTED – 1 PC.
– SOLENOID VALVE 1 1/4″ WITH 24VDCCOIL (MAKER: DANFOSS) – 1 PC.
VALVE WITH APPROVAL FOR DRINKING WATER
– UV LAMP – 2 PCS.
TYPE: LOW PRESSUREPOWER OF EACH LAMP: 48W
TOTAL POWER OF UV-C RADIATION: 26W
– PROTECTION QUARTZ GLASS WITH GASKETS – 1 SET
– UV SENSOR (EEL RAD) – 1 PC.
– UV INDICATOR (INTENSITY METER) WITH 2 ALARMS – 1 PC.
– HOUR-METER – 1 PC.
– OPTICAL AMPER METER FOR SUPPLY CURRENT – 1 PC
RECOMENDED MAXIMUM WATER FLOW RATE (WITH UVC INTENSITY: 400J/m2):
– OPERAITING – 3,72 M3/H
– DIRTY WATER (TRANSMISSION 90%) – 4 m3/h
– CLEAN WATER (TRANSMISSION 95%) – 6 m3/h
– VERY CLEAN WATER – AFTER RO OR EVAPORATOR (TRANSMISSION 98%) – 7 m3/h
ELECTRICAL BOX (CONTROL UNIT)
POWER SUPPLY:
– STANDARD: 220/240V, 50/60Hz
TOTAL POWER CONSUMPTION: 100W
PROTECTION RATING OF DISINFECTION UNIT BODY: IP65
PROTECTION RATING OF ELECTRICAL BOX: IP54
PRODUCT WITH EUROPEAN APPROVAL FOR DRINKING WATER
ALL COMPONENTS MOUNTED ON COMMON SKID & TESTED BEFORE DESPATCH, READY TO USE
SET OF SPARES: NOT INCLUDED
EXPORT PACKING: INCLUDED
COUNTRY OF ORIGIN: POLAND / EU
WARRANTY: 12 MONTHS FROM THE DATE OF SALE
