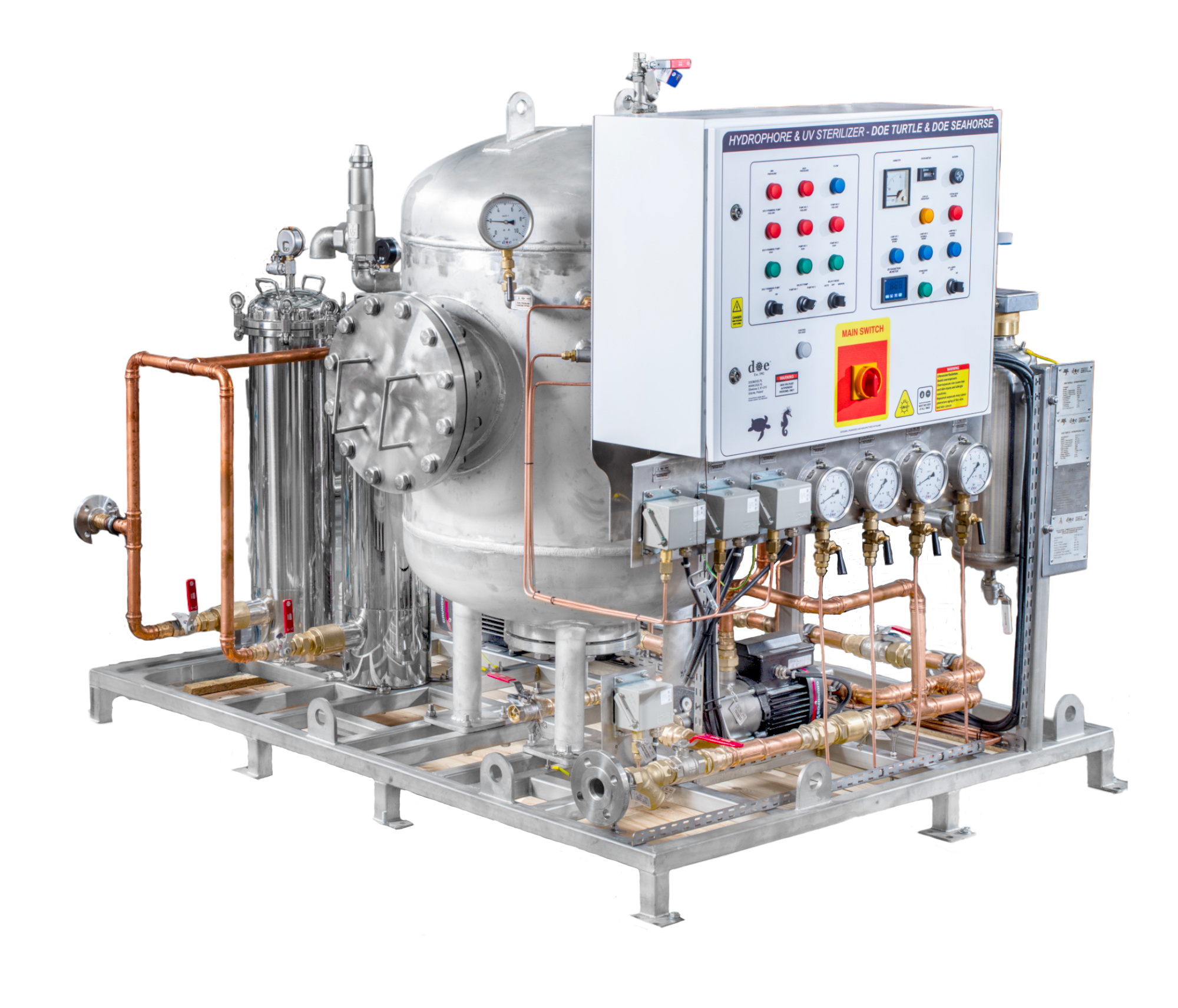

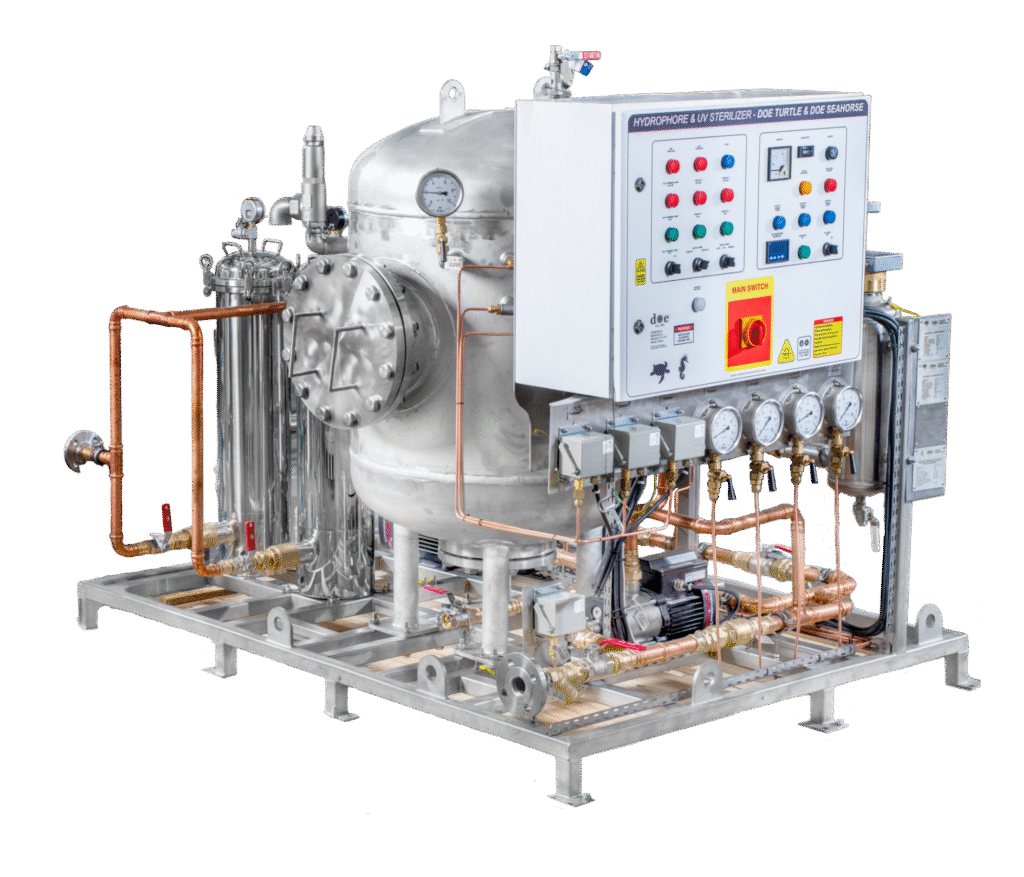

DOE TURTLE IS A SKID-MOUNTED HYDROPHORE WITH DESTINATION FOR SANITARY OR TECHNICAL WATER IN MARINE USE.

MATERIAL:
BODY – STAINLESS STEEL – 316
IMPELLER – STAINLESS STEEL – 316
SHAFT – STAINLESS STEEL – 316

EQUIPMENT:
– PRESSURE GAUGE MADE OF STAINLESS STEEL AISI 316 – 3 PCS
– VACUUM GAUGE MADE OF STAINLESS STEEL AISI 316 – 2 PCS
– PRESSURE GAUGE VALVE – 5 PSC
– PRESSURE SWITCHES
– 3 ( WORK,LOW ALARM, HIGH ALARM)
– FLOW SENSOR – 1 PSC – FOR RUN-DRY PROTECTION
– SAFETY VALVE – 1 PSC
– COMPRESSED AIR INLET VALVE – 1 PC.
– DRAIN VALVE – 1 PC.
– MANHOLE – 1 PC.
– INLET STRAINER – 1 PC

PUMP – NON-SELF PRIMING – 2 PSC
5 M3/H 6 BAR
( ONE WORK, SECOND – STAND-BY)
WITH SOFT STAT

TANK – WITH BLADDER – 1 PC
TYPE – VERTICAL,
CYLINDRICALCAPACITY – 300 L
DESIGN PRESSURE – 7 BAR
WORKING PRESSURE – 6 BAR
MATERIAL – 316L
CERTIFICATE – DNV – CLASS II
