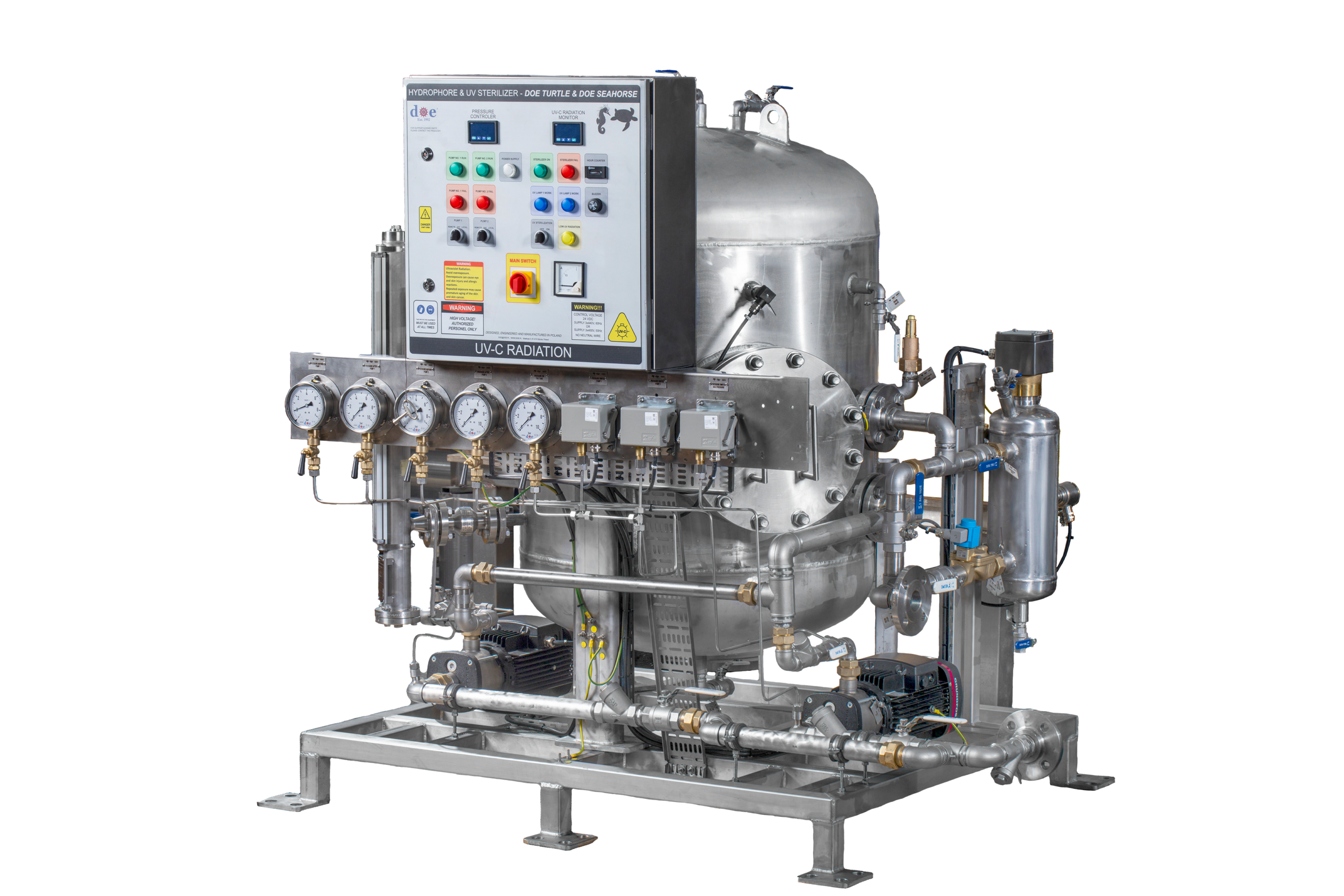

EQUIPPED WITH:
TANK – 1 PC ( TAG 533.4003)
TYPE: VERTICAL, CYLINDRICAL WITHOUT MEMBRANE CAPACITY: 540 LITRES
MATERIAL: STAINLESS STEEL AISI 316L
WORKING PRESSURE: 4,3-5,8 BAR
DESIGN PRESSURE 6,5 BAR
MARINE STANDARD
TANK CLASS CERTIFICATE: DNV
PRESERVATION
– INTENAL/ EXTRERNAL PASSIVATED
– ALL SHARP EDGE BLUNTED
– PAINTING – NOT INCLUDED (NOT REQUIRE FOR STAINLESS STEEL ) CONNECTIONS AND ACCESSORIES
TIE POINT CONNECTIONS WITH NPT THREADED OR BSP THREADED
01.TANK
– INLET WITH BALL VALVE 1 1/4 BSP
– OUTLET ITH BALL VALVE 1 1/4 NPT
– AIR INLET WITH STRAINER 1/2 BSP
– AIR OUTLET WITH SAFETY VALVE 6,5 BAR FOR AIR – WITH SETTING PRESSURE CERTIFICATE 3.1 – VENTING WITH BALL VALVE 1/2 BSP
– DRAIN WITH BALL VALVE 1 BSP
– PRESSURE INDICATOR – PRESSURE GAUGE 0-10 BAR AISI 316L – WITH NEEDLE VALVE
– PRESSURE TRANSMITTER
– DANFOSS PRESSURE SWITCH – ( LOW PRESSURE/ MAX PRESSURE ALARM) – 2 PSC
– MAGNETIC LEVEL INDICATOR WITH VALVE
02. SKID MADE OF STAINLESS STEEL AISI 316 – 1 PC
03. ELECTRICAL BOX (CONTROL UNIT) COMMON FOR DOE TURTLE AND DOE SEAHORSE – 1 PC.
FULLY EQUIPPED, MADE ACCORDING TO CLASS SOCIETY RULES
POWER SUPPLY: 3x440V 60Hz
PROTECTION: IP54
ELECTRIC BOX MADE OF STAINLESS STEEL
PRE-CABLED AND PRE-WIRED
HARDWIRED CONTROL
SIGNAL TO IAS
– PRESSURE INDICATE FOR PRESSURE VESSEL – RUN PUMPS INDICATION
– FAILURE PUMPS INDICATION
– MAX PRESSURE ALARM
– LOW PRESSURE ALARM
– STERILIZER FAILURE INDICATION
– STERILIZER RUN INDICATION
– LOW RADIATION ALARM INDICATION
CONTROL:
– START/STOP SINGAL FROM ICMS FOR HYDROPHORE UNIT AND UV STERILIZER
04. PUMPS ( NO-SELF-PRIMING) ( TAG. 533.4001 / 533.4002) 5 m3/h / 6 BAR – 2 PC.
PUMP CLASS CERTIFICATE: NOT INCLUDED
SUITABLE FOR FRESH WATER
CAPACITY 2 X 100% PRE-CABLED AND PRE-WIRED PUMP MAKER :GRUNDFOS MATERIAL 1.4401
– PRESSURE GAUGE MADE OF STAINLESS STEEL AISI 316 FOR DISCHARGE LINE – 2 PCS.
– PRESSURE VACUUM GAUGE MADE OF STAINLESS STEEL AISI 316 FOR SUCTION LINE – 2 PSC – PRESSURE GAUGE VALVE – 4 PCS.
– DANFOSS PRESSURE SWITCH – ( CUT-IN / CUT-OUT) ONE PER PUMP – 2 PSC
– INLET STRAINER – 1 PC
– CHECK VALVE INLET LINE – 1 PSC
– CHECK VALVE FOR PER PUMP – 2 PSC
05.NAME PLATES /LABELS IN ENGLISH LANGUAGE
06. PIPING MATERIAL: STAINLESS STEEL – 1 SET
SPECIAL FEATURES:
01.ELECTRIC BOX MADE OF SS STEEL
SEAHORSE UV STERILIZER
MOUNTED ON A COMMON SKID WITH DOE TURLE POS.1 MAXIMUM WORKING PRESSURE: 10 BAR
DESIGN PRESSURE: 13 BAR
POWER SUPPLY: 1x230V , 60Hz
SCOPE OF DELIVERY:
– DISINFECTION UNIT BODY MADE OF STAINLESS STEEL 316L – 1 PC. – ELECTRICAL BOX COMMON WITH DOE TURTLE POS. 1
– SOLENOID VALVE WITH 24VDC COIL (MAKER: DANFOSS) – 1 PC. VALVE WITH APPROVAL FOR DRINKING WATER
– UV LAMP – 2 PCS.
TYPE: LOW PRESSURE
POWER OF EACH LAMP: 48W
TOTAL POWER OF UV-C RADIATION: 26W
– PROTECTION QUARTZ GLASS WITH GASKETS – 1 SET
– UV SENSOR (EEL RAD) – 1 PC.
– UV INDICATOR (INTENSITY METER) WITH 2 ALARMS – 1 PC.
– HOUR-METER – 1 PC.
– OPTICAL AMPER METER FOR SUPPLY CURRENT – 1 PC.
– DRAIN VALVE – 1 PC.
– AIR VENT VALVE – 1PC
