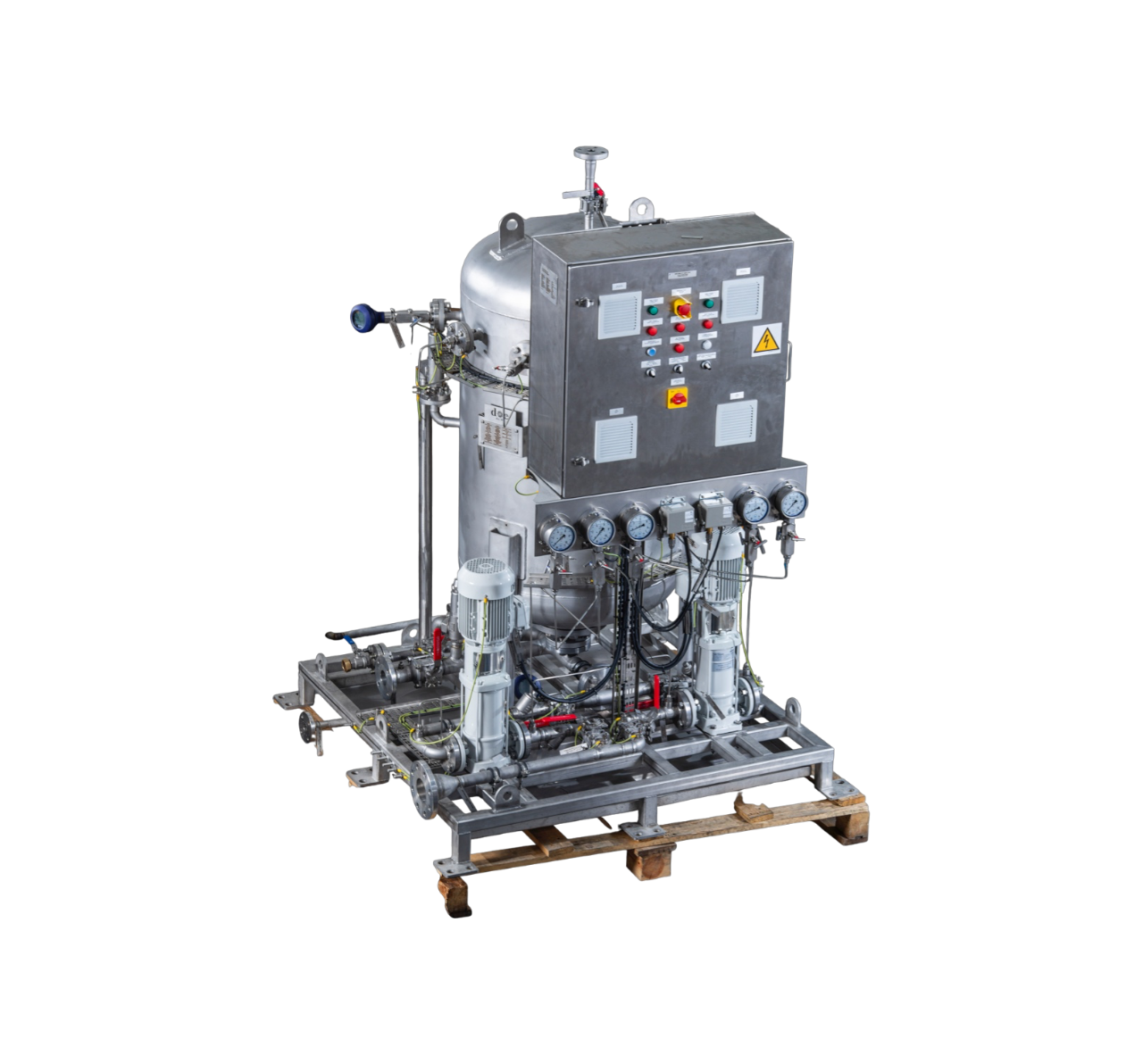

DOE TURTLE IS A SKID-MOUNTED HYDROPHORE WITH DESTINATION FOR SANITARY OR TECHNICAL WATER IN MARINE USE.

TANK VOLUME – 600L
MEMBRANE VOLUME – 353L
MEDIA – WATER, INLET GAS
WORKING PRESSURE – 6.7 BAR
DESIGN PRESSURE – 10 BAR
DESIGN TEMPERATURE -5/45 C
OPERATION TEMPERATURE 5/35 C
WEIGHT – 305KG

EQUIPMENT:
– PRESSURE GAUGE MADE OF STAINLESS STEEL AISI 316 – 3 PCS
– VACUUM GAUGE MADE OF STAINLESS STEEL AISI 316 – 2 PCS
– PRESSURE GAUGE VALVE – 5 PSC
– PRESSURE SWITCHES
– 3 ( WORK,LOW ALARM, HIGH ALARM)
– FLOW SENSOR – 1 PSC – FOR RUN-DRY PROTECTION
– SAFETY VALVE – 1 PSC
– COMPRESSED AIR INLET VALVE – 1 PC.
– DRAIN VALVE – 1 PC.
– MANHOLE – 1 PC.
– INLET STRAINER – 1 PC

PUMP – NON-SELF PRIMING – 2 PSC
5 M3/H 6 BAR
