Description:

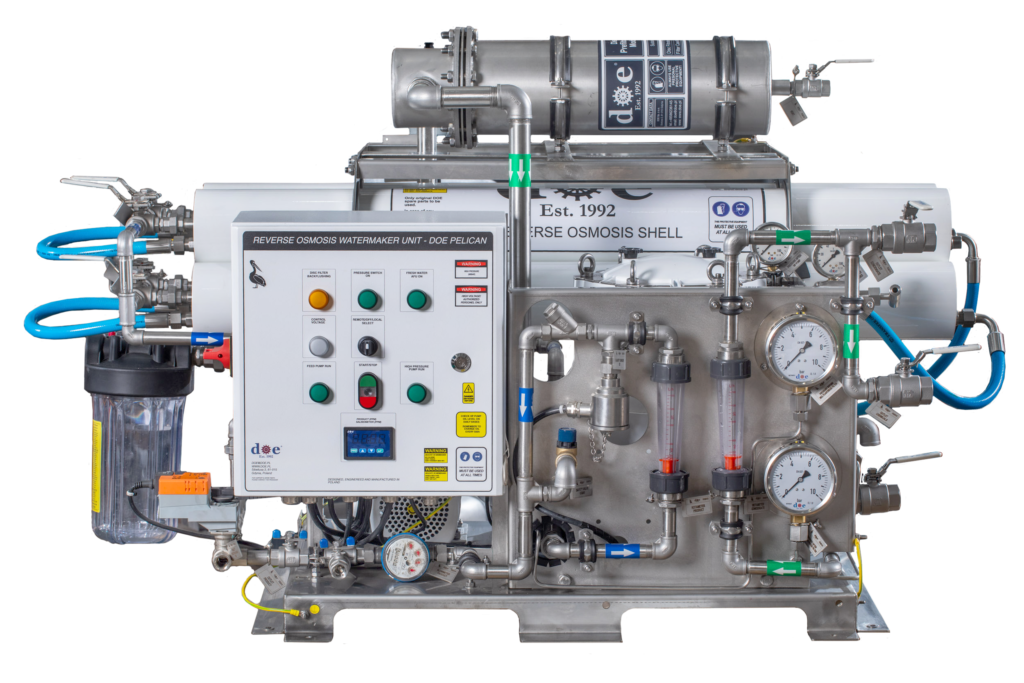

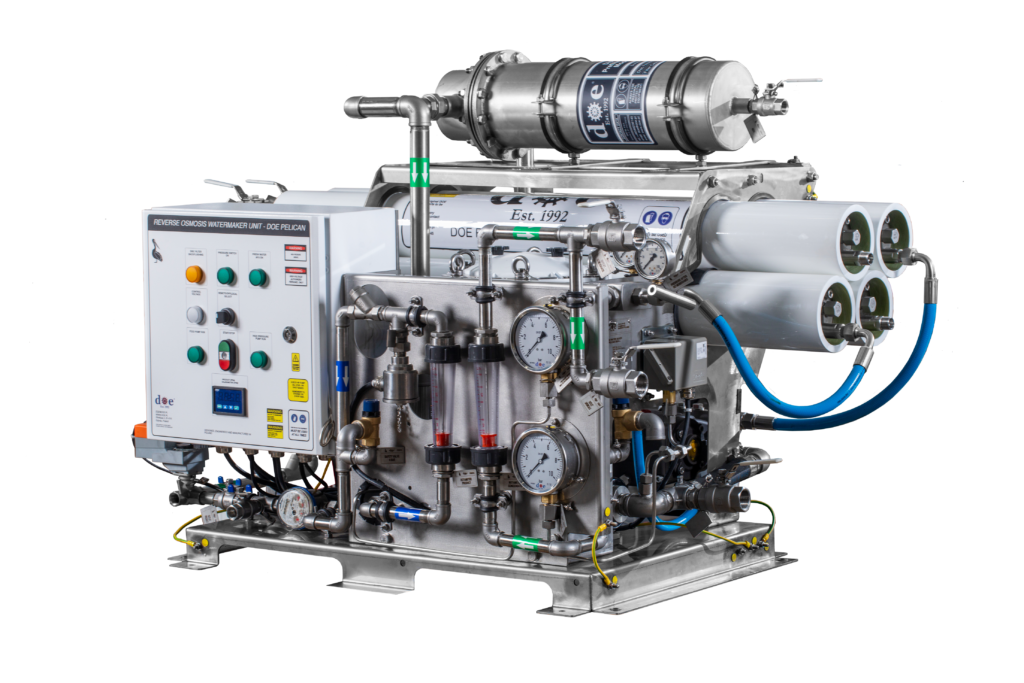

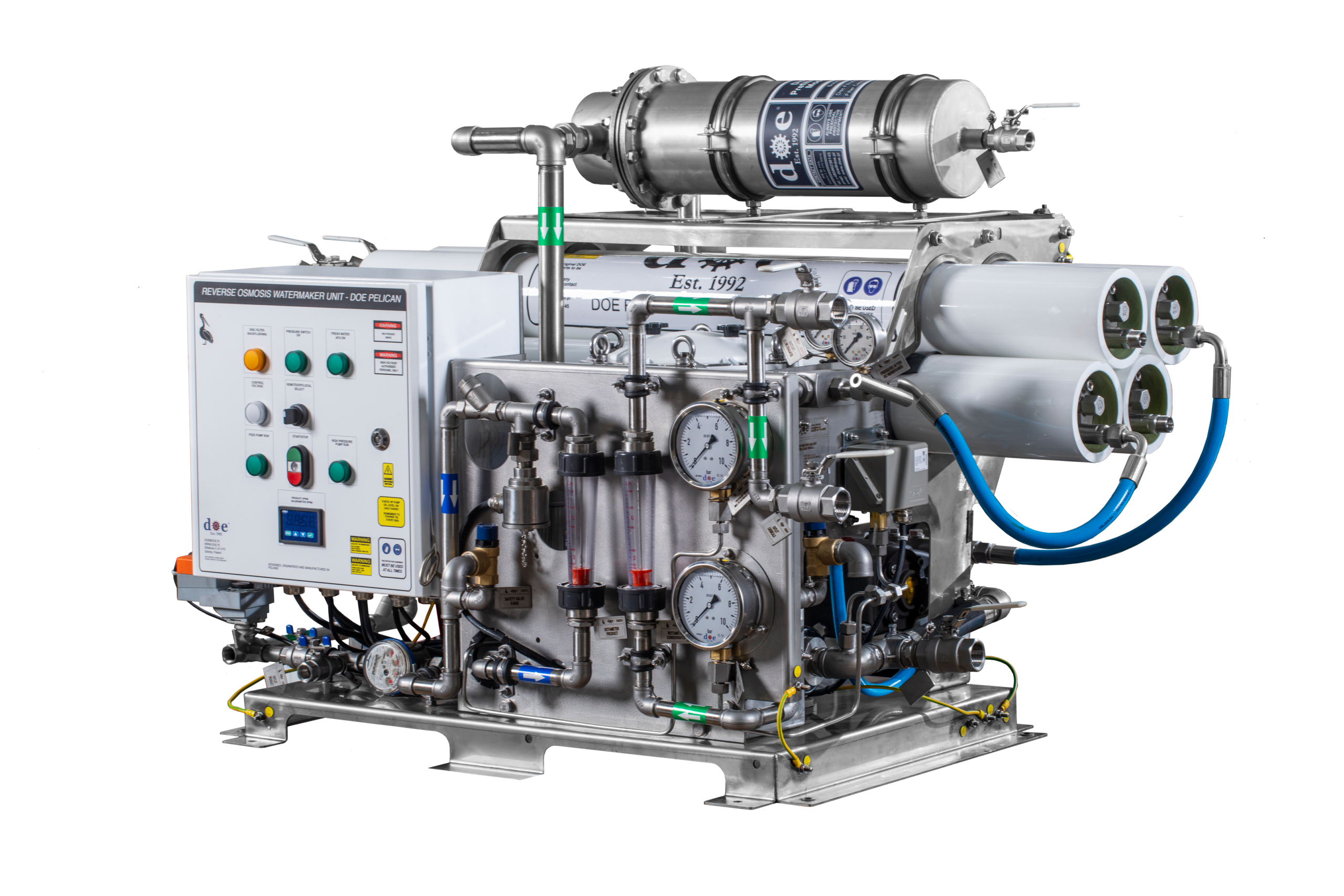

PELICAN SMALL IS AN ULTRA COMPACT & LIGHT UNIT
REVERSE OSMOSIS TECHNOLOGY IS USED TO PURIFY WATER, REMOVE SALT, BACTERIA, VIRUSES AND OTHER DISSOLVABLE CHEMICALS.
PELICAN SMALL IS A DURABLE MACHINE WITH ROBUST CONSTRUCTION, EASY FOR MAINTENANCE.
CAPACITY: 10 m3/24h (WITH 25 DEG. C AND 36000 PPM SALT WATER) FLOW IN: 30 m3/24h OF SALT WATER
SCOPE OF SUPPLY:
– HIGH PRESSURE PUMP WITH ELECTRIC MOTOR – 1 PC
(SUITABLE FOR SALT WATER)
– FEED PUMP WITH ELECTRIC MOTOR – 1 SET
– HIGH PRESSURE RO MEMBRANES – 1 SET
– GRP PRESSURE VESSELS FOR RO MEMBRANES – 1 SET – ELECTRICAL BOX (CONTROL UNIT) – 1 PC.
FULLY EQUIPPED WITH POWER SUPPLY, ALARM LIGHTS AND FUSES MATERIAL: GALVANIZED BLACK STEEL, POWDER PAINTED PROTECTION CLASS: IP54
POWER SUPPLY: 3x400V 50Hz
– COMMON FRAME MADE OF STAINLESS STEEL – 1 PC. – PRESSURE SWITCH FOR HP PROTECTION – 1 PC.
– PRESSURE GAUGES – 1 SET
– ROTA-METERS – 1 SET
– SAFETY VALVES – 1 SET
– PRESSURE DUMPER – 1 PC.
– SALINITY METER – 1 SET
– 1st AFU – SEMI-AUTOMATIC SYSTEM FOR FLUSING – 1 PC
– 2nd PRE-FILTER – 1 PC.
– PIPING MADE OF SS 316 OR BETTER – 1 SET
– NAME PLATE MADE OF STAINLESS STEEL IN ENGLISH – 1 PC.
SPECIAL FEATURES:
– ACTIVATED CARBON FILTER ON FLUSHING LINE TO R.O. SYSTEM 10″ X 4,5″ – LCP POWDER PAINTED 9003
– SKID AND PIPING WITOUT PAINTING
– PUMPS MOTORS PAINTED 9003
